Product description
Bimetal band saw blade with constant tooth pitch for smaller dimensions
Application:
- suitable for regular steels and non-ferous materials

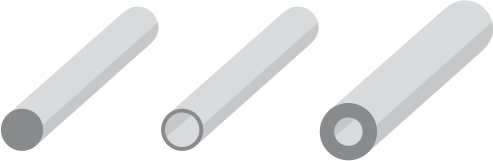

- cross-sections under 100 mm, profiles and structures
Characteristics:
- M42 HSS cutting edge

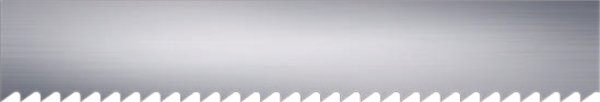

- constant tooth pitch

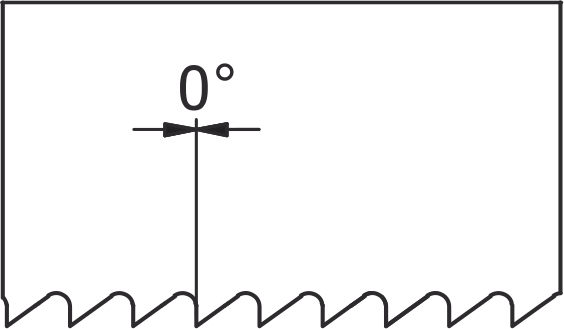

- zero rake agle
| Dimensions | TPI | |||
|---|---|---|---|---|
| mm | 6 | 10 | 14 | 18 |
| 13 x 0,65 | N | N | N | |
| 13 x 0,90 | N | N | N | |
| 20 x 0,90 | N | N | N | |
| 27 x 0,90 | N | N | N | N |
N = constant tooth tip and zero rake angle
Remember that proper running-in of band saw blades helps to increase their life time expectancy. Cutting conditions of new band set for 20 minutes: feed rate set to 50% and cutting speed to 80% of normal values.
Komentáře
Tento produkt nebyl ještě hodnocen.
Parametry
| Band choice | 6x0,90 10z; 6x0,90 14z; 10x0,90 8z; 10x0,90 10z; 10x0,90 14z; 13x0,65 10z; 13x0,65 14z; 13x0,65 18z; 13x0,90 8z; 13x0,90 10z; 13x0,90 14z; 13x0,90 18z; 20x0,90 4z; 20x0,90 10z; 20x0,90 14z; 20x0,90 18z; 27x0,90 4z; 27x0,90 6z; 27x0,90 8z; 27x0,90 14z; 27x0,90 18z; 34x1,10 4z; 34x1,10 6z; 34x1,10 8z; 34x1,10 10z; 34x1,10 14z; |
| Width | 10; 13; 20; 27; 34; |
| Thickness | 0,90; 1,10; |
| TPI | 6; 8; 10; 14; 18; |
